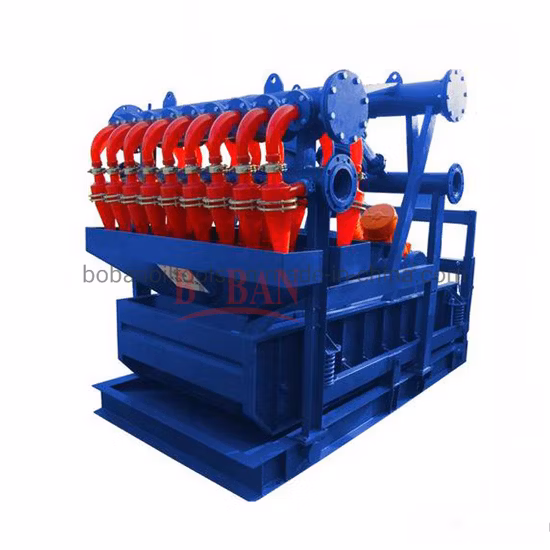

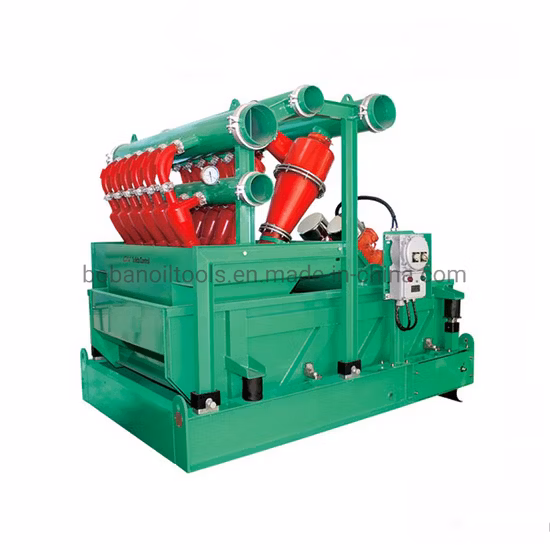

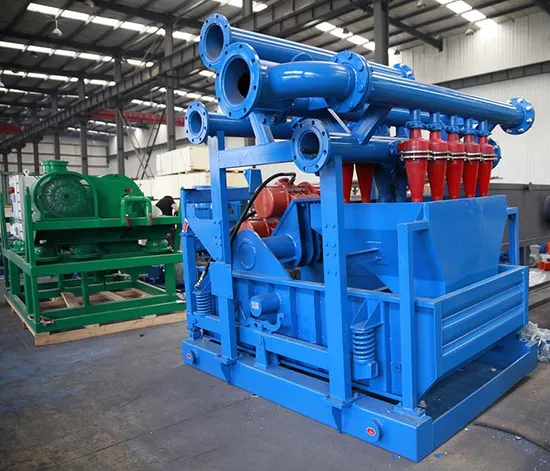

Drilling Mud Cleaner for HDD

Overview

Basic Info.

Model NO.	BBQJ200
Type	Mud Cleaner
Desander Cyclone Qty	1nos
Desilter Cyclone Specs	4in
Desander Cyclone Specs	8in
Treatment Capacity	60m3
Transport Package	Pallet or Wooden Case
Specification	1510× 1160X2000mm
Trademark	BOBAN & OEM
Origin	China
HS Code	8431431000
Production Capacity	50 PCS Per Month

Product Description

Drilling Mud Cleaner for HDD Product Description

Boban series mud cleaner is the second or third stage separation equipment of drilling liquid, which will handle the solids particle after being treated by the first grade separation equipment. The mud will be recovered and cuttings which are bigger than mud will be removed. Then the drilling cuttings in the underflow will flow into circulation tanks through the screens when the weighted mud passes while the particles that are bigger than mesh will be removed.

Product Parameters

Model	BBQJ200×1S-100×4N	BBQJ200×2S-100×8N	BBQJ250×2S-100×12N	BBQJ250×3S-100×20N
Treatment Capacity	60m³	120m³	240m³	320m³
Desander Cyclone Specs	8in		10in
Desander Cyclone Qty	1nos	2nos	2nos	3nos
Desilter Cyclone Specs	4in
Desilter Cyclone Qty	5nos	8nos	12nos	20nos
Working Pressure	0.25~0.4mpa
Inlet Size	DN125mm	DN150mm	DN150mm	DN200mm
Outlet Size	DN150mm	DN200mm	DN200mm	DN250mm
Separation Point	15μm~44μm
Bottom Shaker Model	BBZS60/N/A	BBZS752/N/A	BBZS752/N/A	BBZS703/N/A
Dimension	1510×1160X2000mm	1835×1230×1810mm	1835×1230×1810mm	2419×2150×2147mm
Weight	600kg	980kg	1250kg	2350 kg

Features and Benefits:
1.Integrated desander, desilter, and shale shaker into one body, smaller size;
2.Selected high-chromium-iron lined polyurethane or pure polyurethane, guaranteeing long service life of cyclones;
3. High-manganese alloy steel made screen box, with high strength, lengthening the service life;
4. Adopted international brand vibration motor, Martin or OLI motor;
5. Shaker box undergoes thermal treatment, with heavy anti-corrosive coating, long service life guaranteed;
6. High G-force vibration strength (adjustable), able to be used to separate high specific-gravity mud that has high viscosity;
7. Plate tension and wedge are both available for screen fixation;
8. International brand electrical components, Schneider or Siemens.
Company Profile

Xi′an BOBAN Oil Tools Co., Ltd. Make & Supply a full line of equipment for O& G, horizontal directional drilling (HDD), micro-tunnelling, pipe jacking, etc, In O& G section, we can supply drilling rig component, downhole drilling tools, fishing tools, tubular handling tools, well control equipments, drilling fluid mixing & Recycling system, solid controling equipments and other relevant oiltools,All our products are API certified, and we are also authorized by ISO: 9001-2000. With advanced production facilities, rigorous quality management, and the joint efforts of our experting staff, Boban has been qualified vendor for many renowned companies in Italy, Germany, Poland, UAE, Kuwait, Egypt, & South East Asia, etc since its establishment in 2018. And obtained a good reputation among the offshore customers as well as other industrial clients.With our reasonnal prices, quick reaction, high quality products and deliver anywhere on time as well as superior service, Boban has stablished good cooperation relationship with many well-known customers in the world, and also wish to have the chance to work with more and more customers from all over the world!
